Strip slit from master coil to the exact width you run, with deburred or rounded edges and tight width tolerance.
03.01

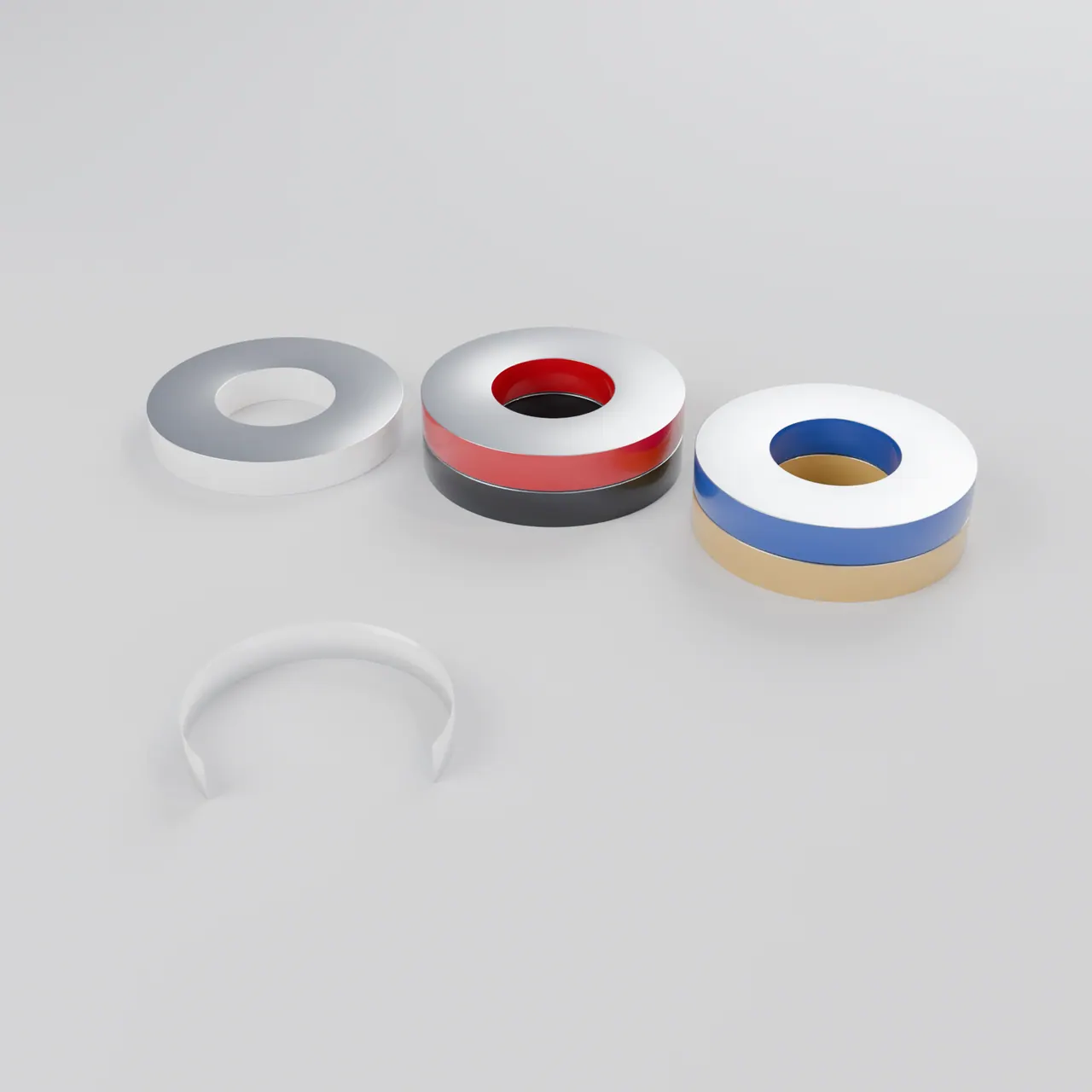

Color-coated strip for the returns of channel letters and signs, flat or with a folded edge, in solid, brushed and mirror finishes.
| Thickness | 0.6 mm, 0.8 mm; others on request |
|---|---|
| Width | 30–100 mm, measured unfolded |
| Edge | Flat (FL) or single folded edge (DF) |
| Length per coil | 40 m folded, 80 m flat, or to order |
| Coating | PE polyester; top coat 16–18 μm, back coat 9–10 μm |
03.02

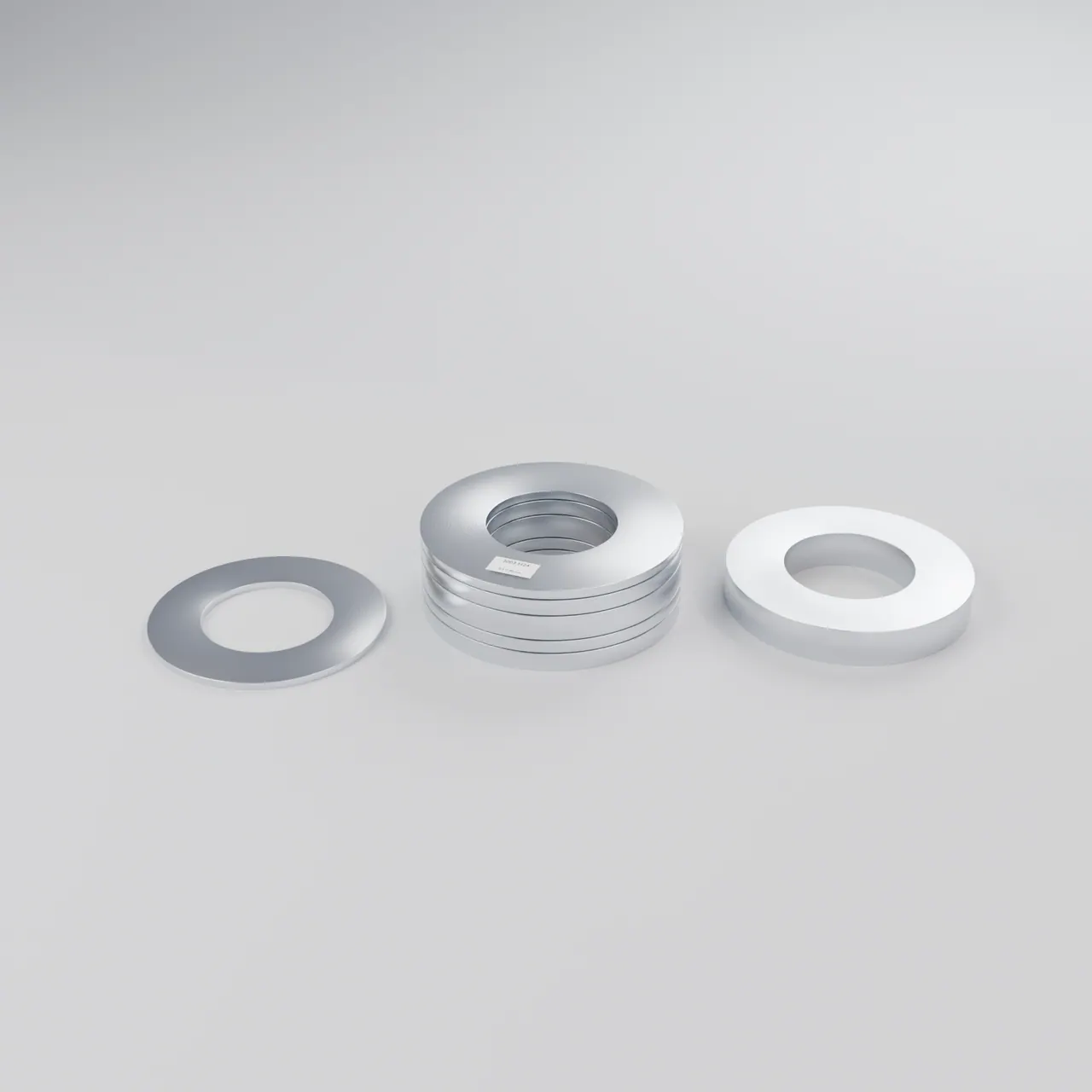

Bare strip in any alloy we supply as coil, slit to width for stamping, roll forming and cable wrap.
| Alloy | 1050, 1060, 3003, 5052, 8011 |
|---|---|
| Thickness | 0.1–3.0 mm |
| Width | 10–600 mm |
| Edge | Mill, deburred or rounded |
03.03

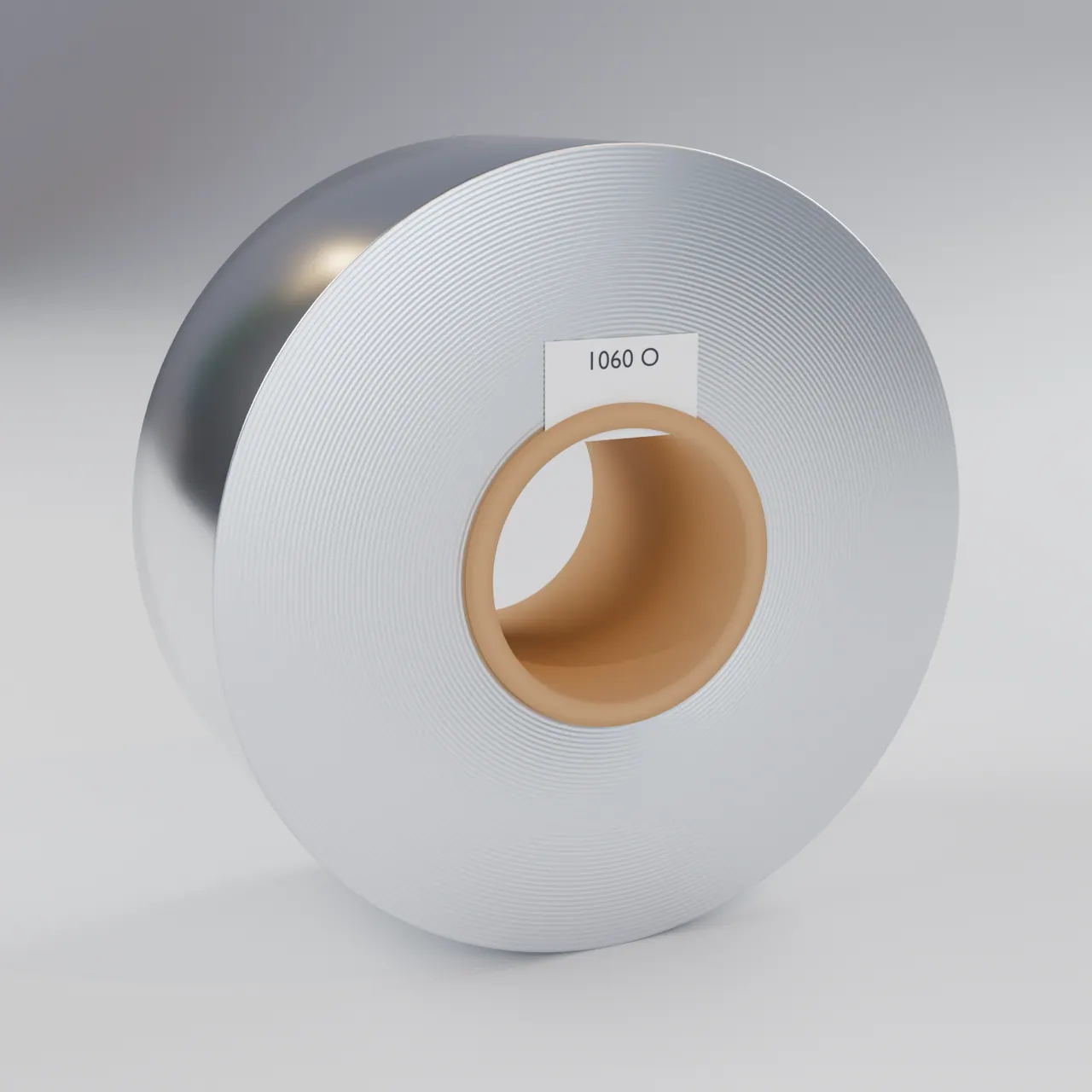

Soft high-purity strip with burr-free rounded edges for dry-type transformer windings.
| Alloy | 1060, 1070, 1350 |
|---|---|
| Temper | O |
| Thickness | 0.2–3.0 mm |
| Width | 20–1,600 mm |
03.04

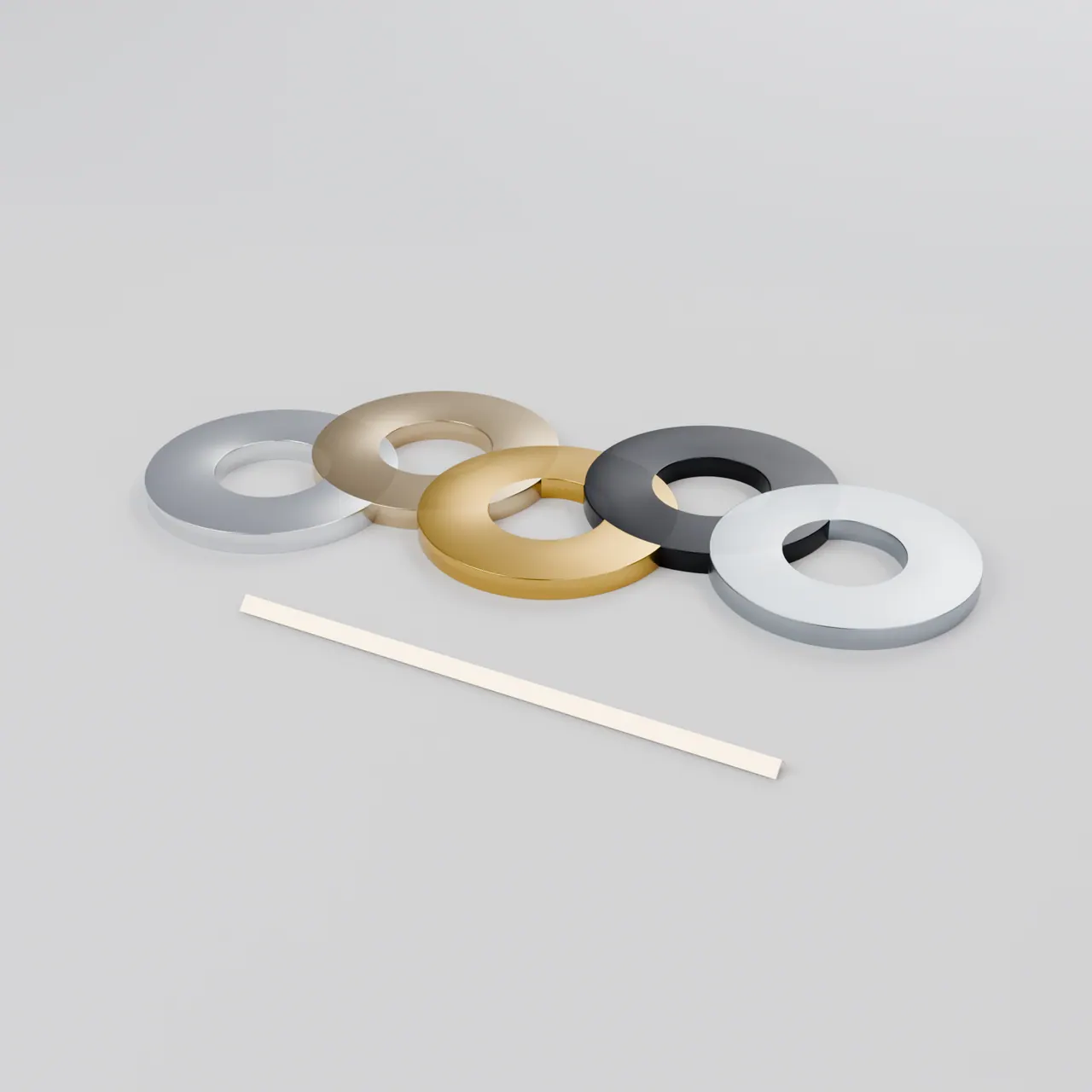

Coated or anodized narrow coil for trims, edge protectors, blinds and profiles.
| Alloy | 3003, 5052 |
|---|---|
| Thickness | 0.15–1.0 mm |
| Width | 12–200 mm |
| Surface | Coated, anodized or brushed |
Send the product, size and quantity. You get price, lead time and packing details within one working day.
